PTL
|

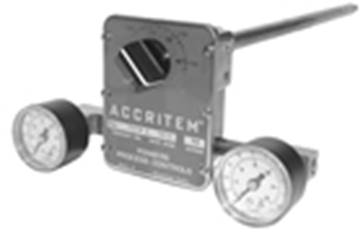

The PTL Pneumatic
Temperature Controlleroperates
over a wider temperature range than our standard “T” temperature pilot. These
temperature controllers also react quicker to temperature change which make
them an excellent choice for instantaneous hot water applications. The PTL
controller is designed to be directly mounted to a process tank or
vessel.
The PTL Pneumatic
Temperature Controller is used in conjunction with an “A” Air Pilot to control the operation
of the HD Regulator. The
PTL uses a bimetallic element to
sense temperature. The air supply is connected to the inlet of the controller
and the air output signal is fed directly to an Air Pilot, which controls the
opening and closing of the steam regulating valve.
|
Model: PTL
Sensing Bulb:
Material: Copper
Max Pressure: 250
PSIG
Max Temperature: 400 °F
Temperature Adjustment Range: 50-350
°F
Maximum Air Supply Pressure: 35 PSIG
|
|
Submittal Download
PTR
|

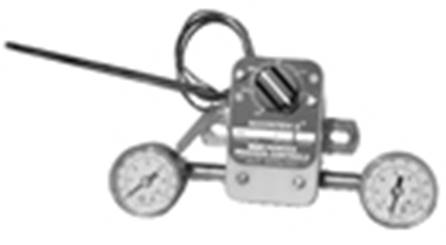

The PTR Pneumatic
Temperature Controlleroperates over a wider temperature range
than our standard “T” temperature pilot. These temperature controllers also
react quicker to temperature change which make them an excellent choice for
instantaneous hot water applications. The PTR controller is designed to be remotely mounted to
a control panel; the sensor mounts directly to the process tank and connects
to the controller with a capillary.
The PTR Pneumatic Temperature Controller is used in conjunction with an “A” Air Pilot to
control the operation of the HD
Regulator.The PTR uses a hydraulically filled bulb with
a 4-ft. capillary to
sense temperature. The air supply is connected to the inlet of the controller
and the air output signal is fed directly to an Air Pilot, which controls the
opening and closing of the steam regulating valve.
|
Model: PTR
Sensing Bulb:
Material: Copper
Max Pressure: 250
PSIG
Max Temperature: 350 °F
Temperature Adjustment Range: 0-300
°F
Maximum Air Supply Pressure: 35 PSIG
Capillary Length: 4 ft
|
